Bezel Set - Pendant
Lesson 31 of 58
Offset and Group
Sign in to access this lesson
This lesson is part of Iconic Fashion Pieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Iconic Fashion Pieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Offset the curves and organize them into groups for easier manipulation.

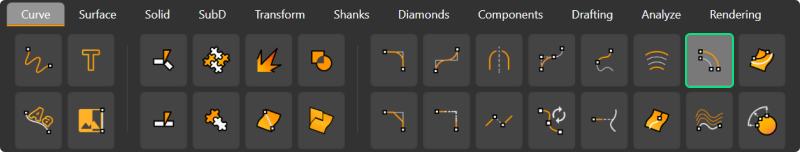

Step 1: In the Curve tab, select the Offset command.

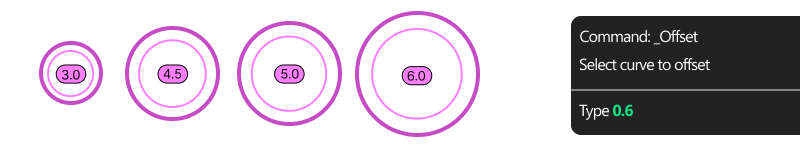

Step 2: Type 0.6 millimeters to offset each of the circles. Repeat this for all circles.

Once completed, move the outer curves to a different layer for better visibility.
Remember that by holding the Shift key, you can select multiple items.
Step 3: Group each pair by typing Group in the command bar for the first pair. Repeat using the right-click method for the other pairs.
Video Lesson
Next Step: Create a pattern from the curves.
