Bezel Set - Render
Lesson 57 of 58
Ring Materials and Render
Sign in to access this lesson
This lesson is part of Iconic Fashion Pieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Iconic Fashion Pieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.
Objective: Make final adjustments to materials and render settings, and then proceed with rendering the model.

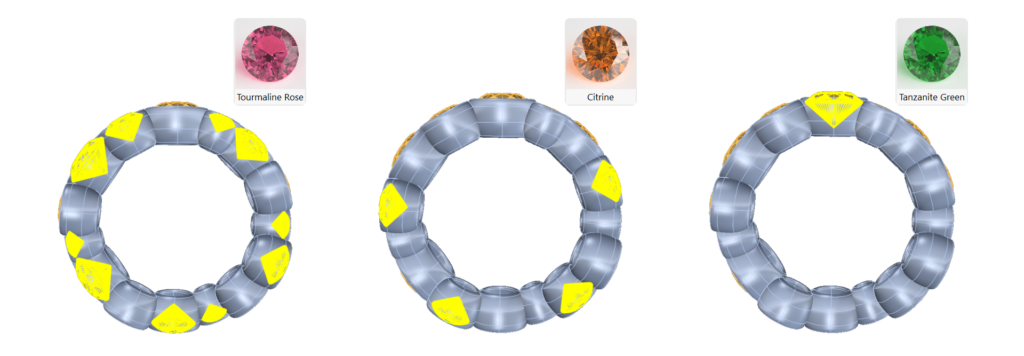

Step 1: On the ring model, select two gems after each green gem, leaving one gem unselected between each pair.

Using Shift you can select multiple elements.
Step 2: Apply Tourmaline Rose to these selected gems and apply Citrine to the remaining ones.

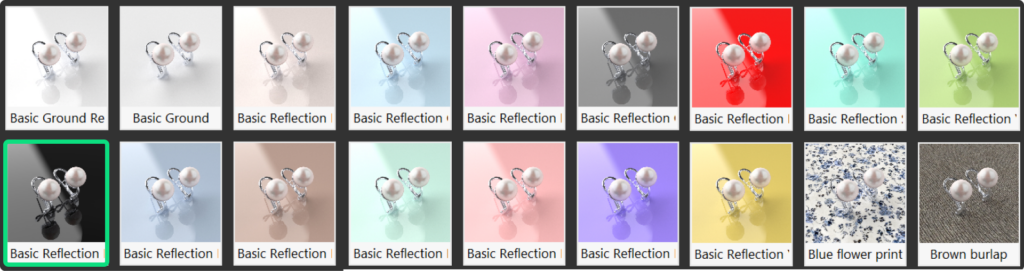

Step 3: Apply the Basic Reflection Black material to the floor.

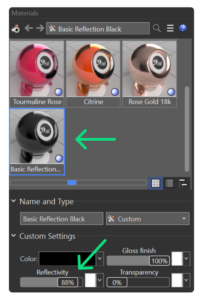

Step 4: In the Materials panel, adjust the reflection polish to 88%.

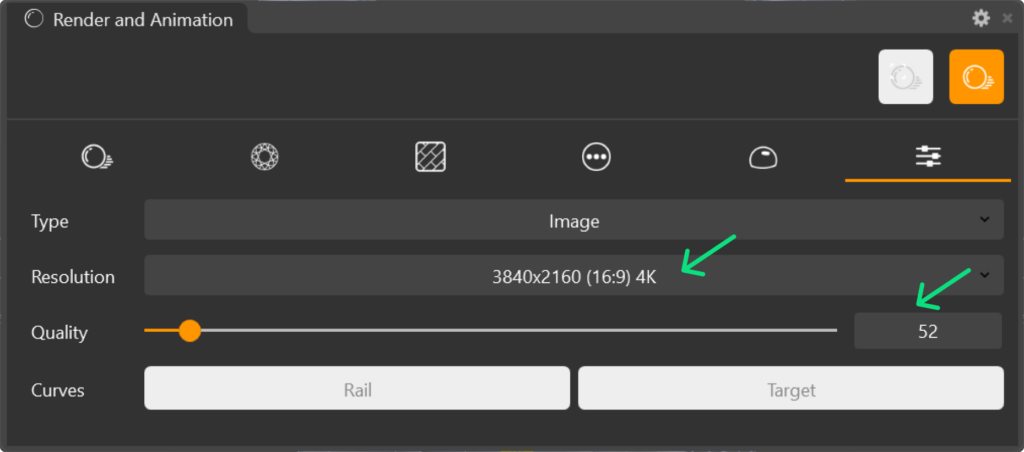

Step 5: In the Render and Animation panel, set the resolution to 4K and the quality to 52.

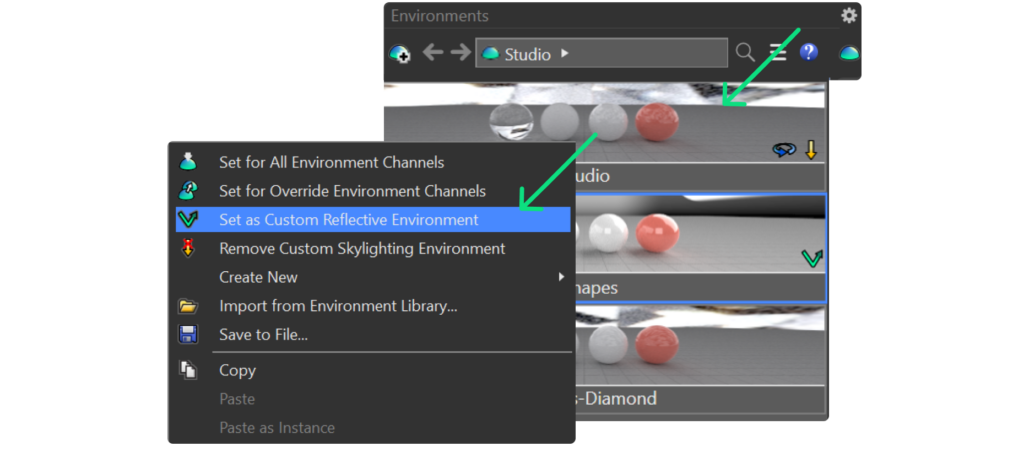

Step 6: Right-click on Studio in the Environments panel and choose Set as Custom Reflective Environment.

Step 7: In the Rendering and Animation panel click on Render.
