Fantasy Ring
Lesson 15 of 58
Shank
Sign in to access this lesson
This lesson is part of Iconic Fashion Pieces, which can come bundled with a RhinoArtisan Commercial license subject to current promotions. Log in with your customer account, or get in touch and we'll set you up.
Customers only
Solo para clientes
This lesson is part of Iconic Fashion Pieces, which can be included with a RhinoArtisan Commercial license subject to current promotions. If you've already purchased and don't see it in your account, get in touch.

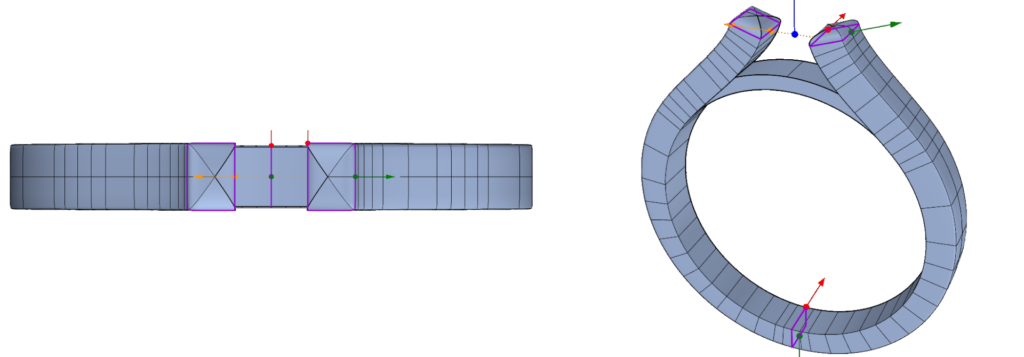

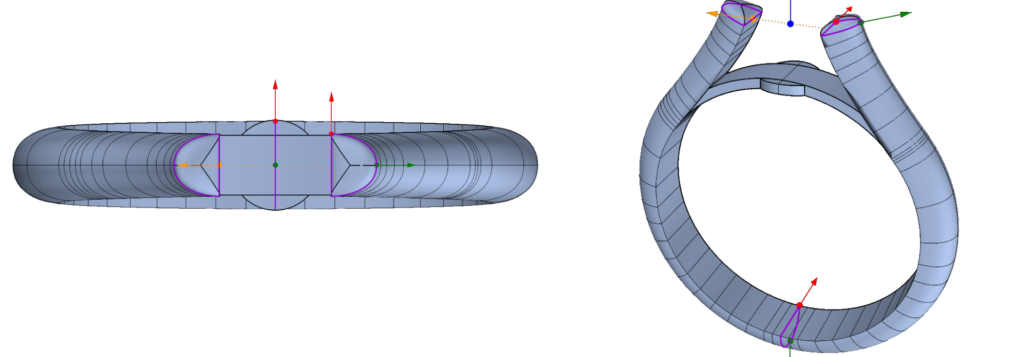

Objective: Create and adjust the custom cathedral shank.

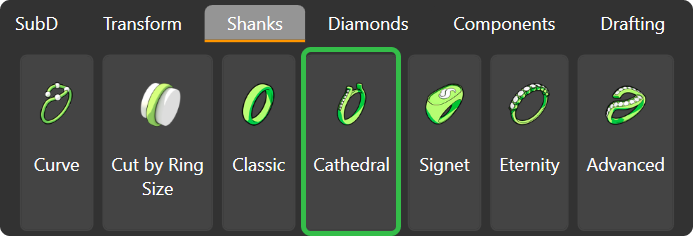

Step1: Go to the “Shanks” tab and select the “Cathedral” command.
Step 2: Click “Edit”

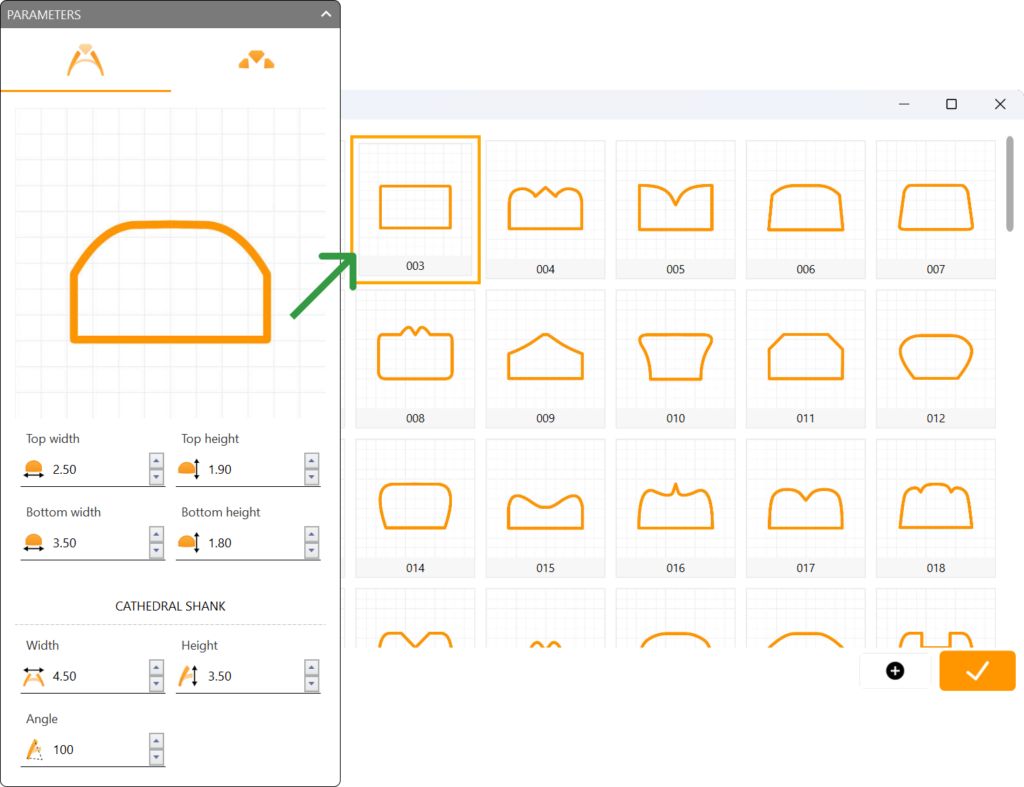

Step 3: For the profile, select curve 003.

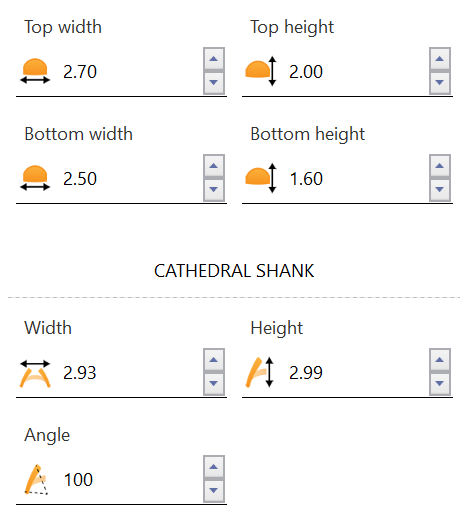

Step 4: Adjust the parameters:
- Top width: 2.70 millimeters.
- Top height: 2 millimeters.
- Bottom width: 2.5 millimeters.
- Bottom height: 1.6 millimeters.
- Cathedral width: 2.93 millimeters.
- Cathedral height: 2.99 millimeters.
Video Lesson
Next Step: Adjust the shank bridge and add gems to the design.
