Objective: Rotate the gem and bezel for the fantasy ring design.

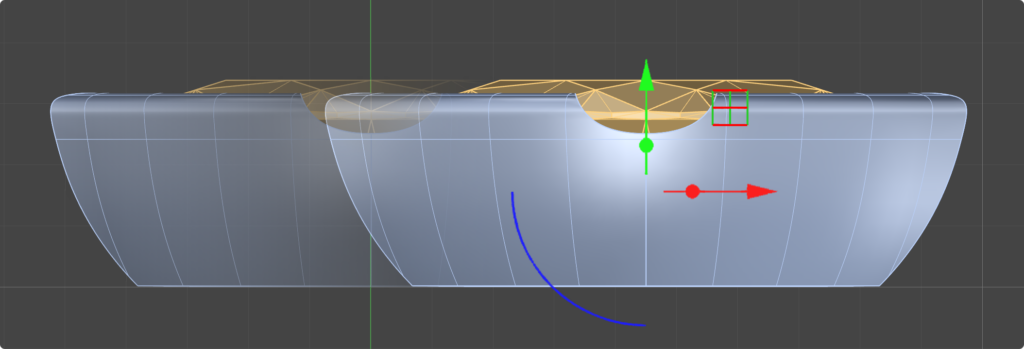

Step 1: From the top view, use the Gumball to move the gem 4.5 millimeters on the X-axis.

Step 2: Select both the gem and bezel. Use the “Rotate” command in the “Transform” tab.

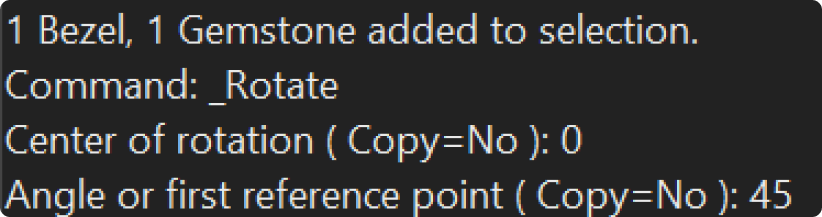

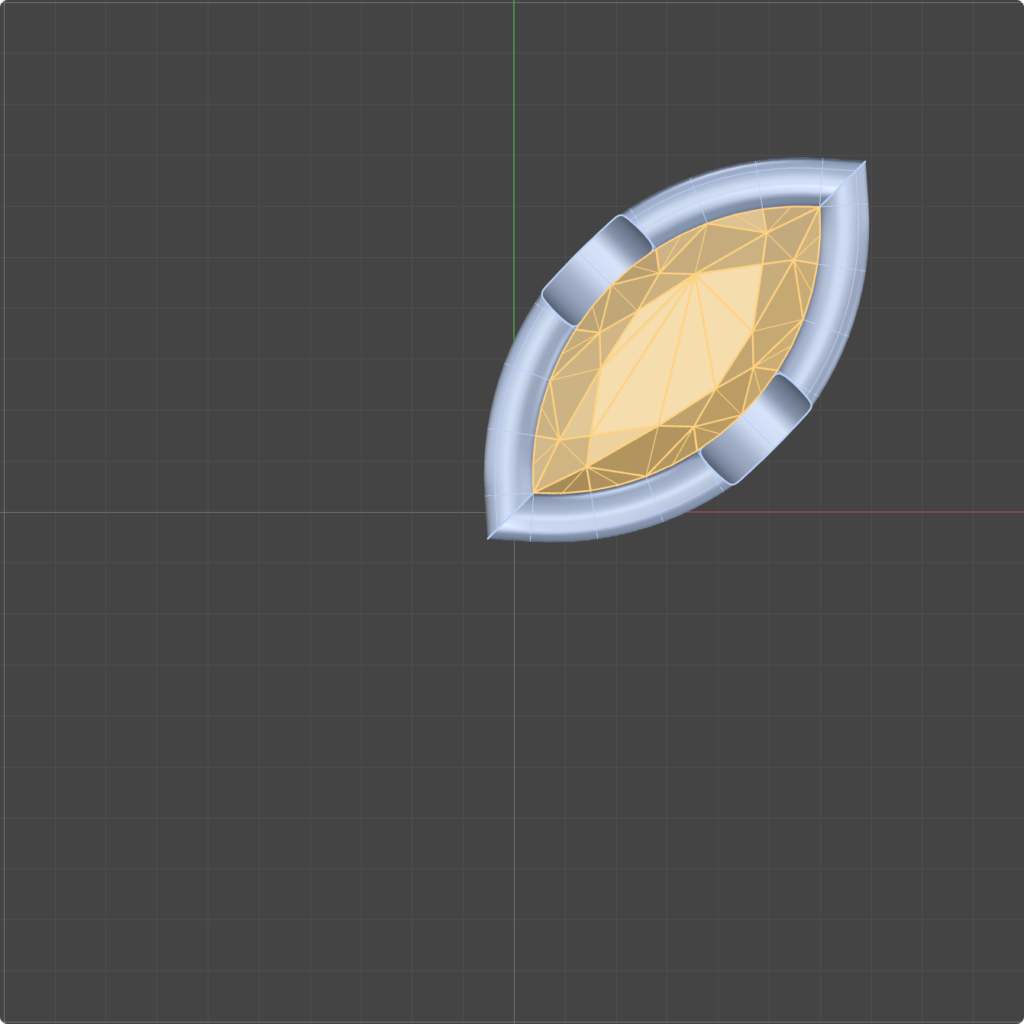

Step 3: Set the rotation center to point 0, using the XY plane. Type 0 in the command bar. Activate “Grid Snap” mode. Rotate 45 degrees by typing “45” into the command bar, ensuring the “Copy” option is set to “No.”


Video Lesson
Next Step: Create a polar array to finalize the gem and bezel arrangement.
