Manufacturing
Sprue Single
Sprue Single

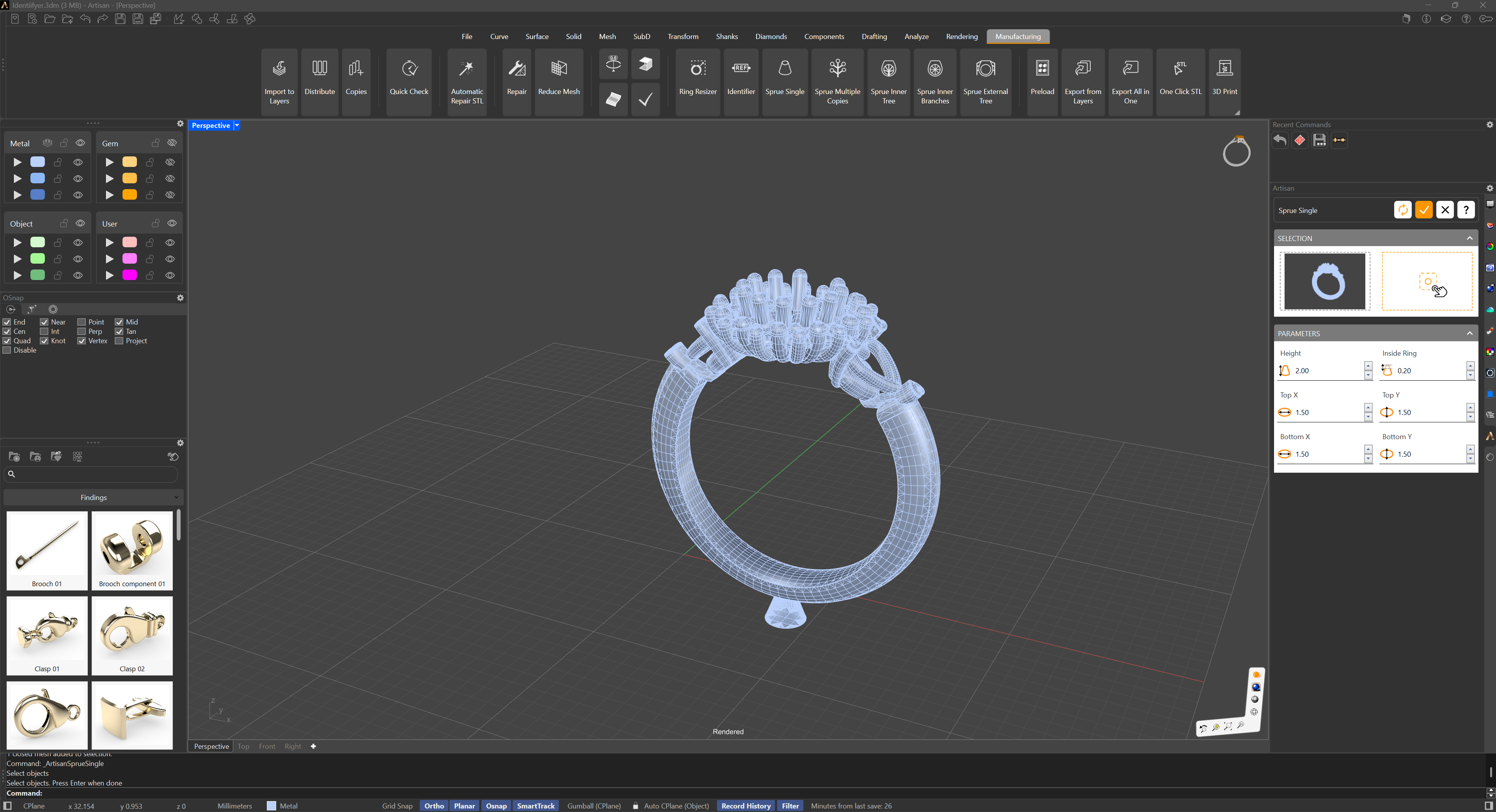

Sprue Single places one sprue on one piece, exactly where you click: pick the point on the mesh and the sprue is built there, with its shape and dimensions under your control.
- Height — the length of the sprue.
- X and Y axes — the diameters of the ellipse at the top and at the bottom.
- Shape — a round sprue with a constant diameter, or a conical one that tapers between the two ellipses.
.png)
It is the manual tool of the group — one piece, one feed, placed by eye. For a whole set of copies at once, use Sprue Multiple Copies.
