Align Gems

Align Gems

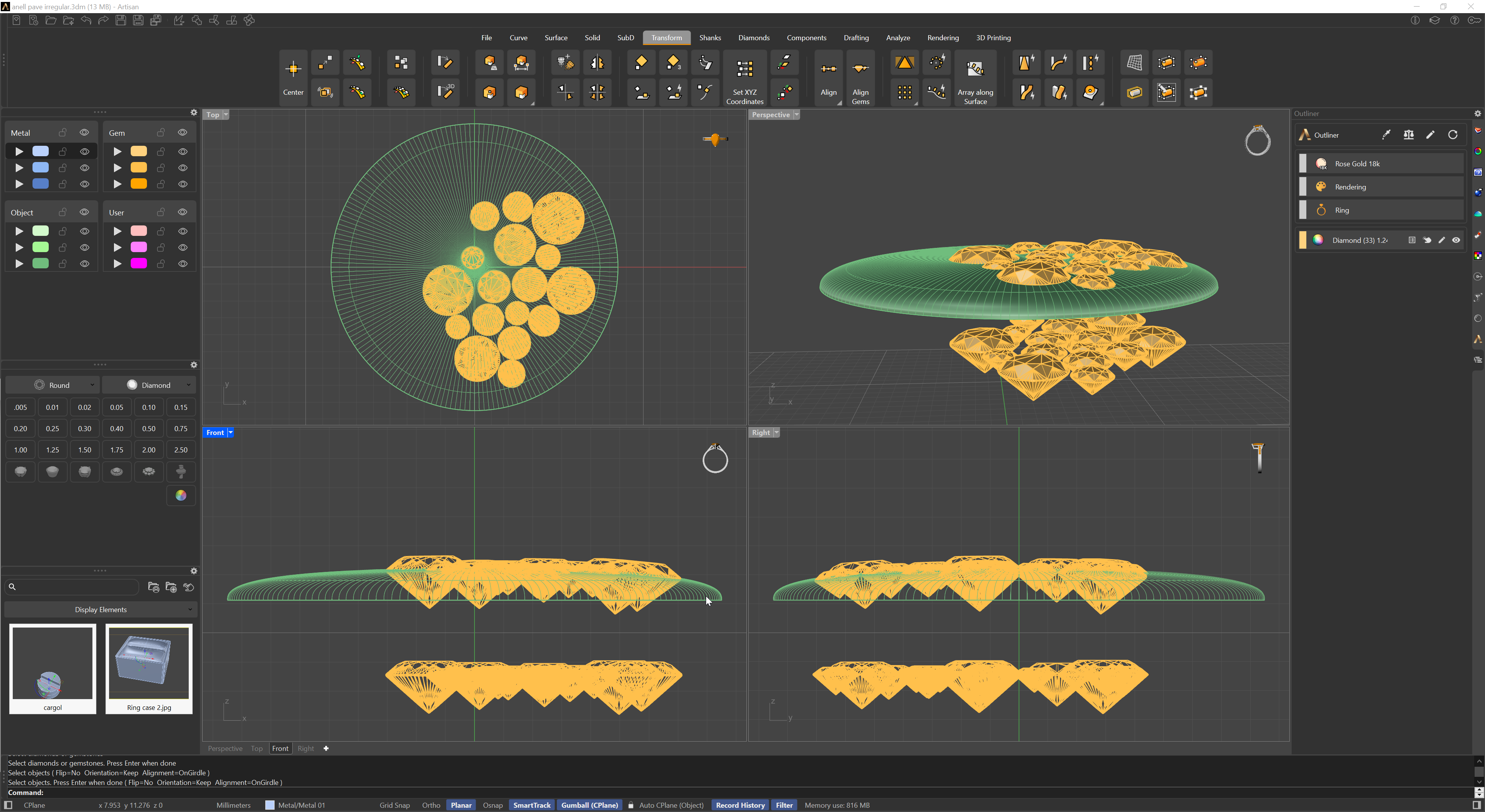

The Align Gems command allows users to quickly align gems in the viewport to a selected surface, providing flexibility in positioning and orientation.

Key features:

  1. Surface Alignment: Select a surface to which the gems will be aligned.
  2. Flip Option: Toggle the orientation of the gems for optimal placement.
  3. Adapt or Keep Orientation:
    • Adapt to Object: The gems will adjust their orientation to match the surface.
    • Keep Orientation: The gems will maintain their current orientation while aligning to the surface.
  4. Alignment Modes:
    • Align from the Table: Aligns the gems with the table (the top, flat facet).
    • Align from the Girdle: Aligns the gems with the girdle (the widest part of the gem).

This command simplifies gem alignment, ensuring precision while offering customizable orientation options.
