Thickness
Thickness

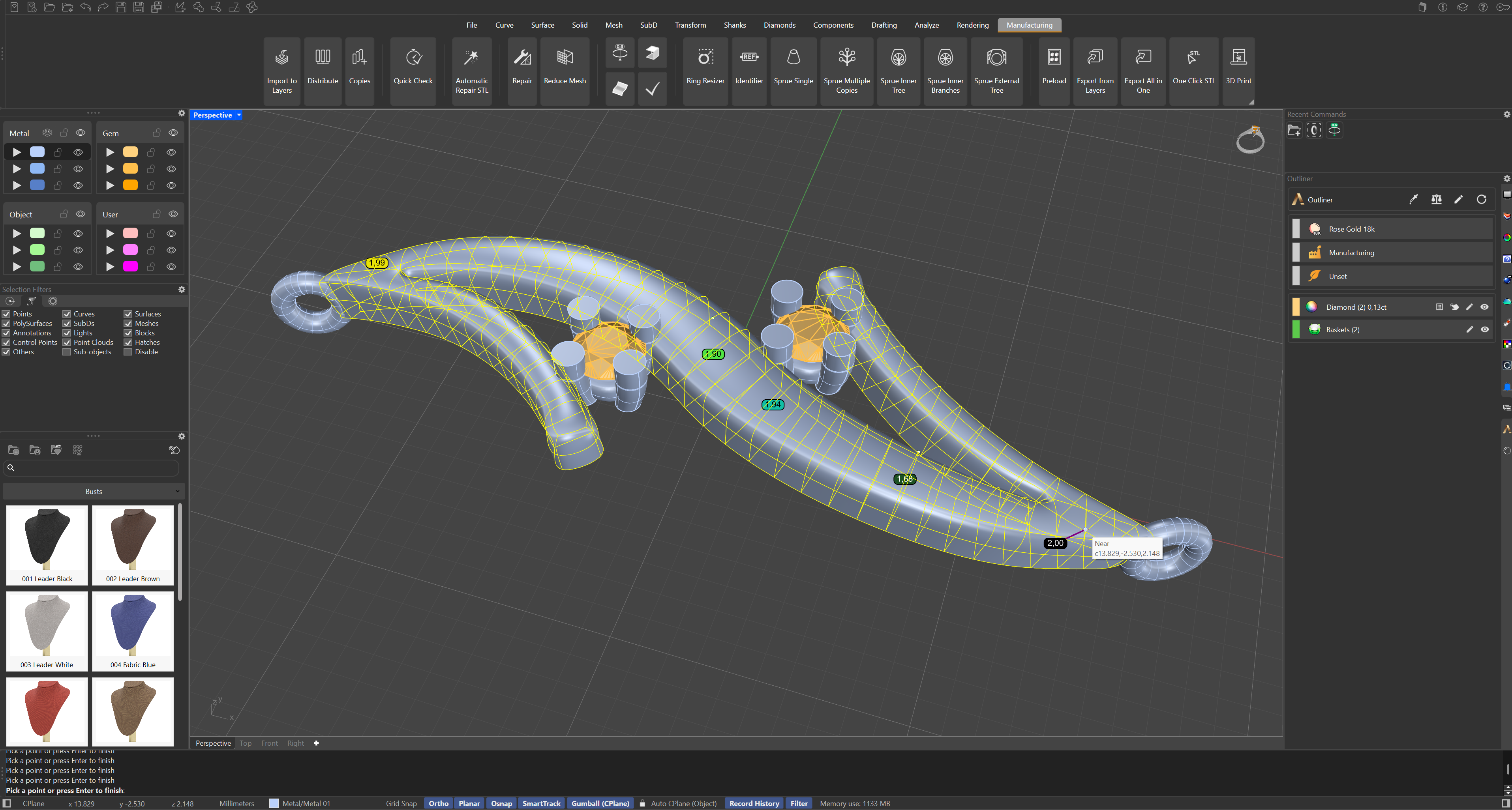

Thickness measures the wall of the piece exactly where you point: select the object, then move the cursor over its surface and the wall thickness under the cursor is calculated live, measured along the surface normal, with a line in the viewport showing the direction of the measurement.
Click to place a text marker with the value at that spot — you can mark as many points as you need, building a record of the walls that matter: the bottom of the shank, the seat under a stone, the back of a signet.
.png)
For a map of the whole piece against a minimum value instead of a probe, use Global Thickness.
