Breakdown Gems
Breakdown Gems

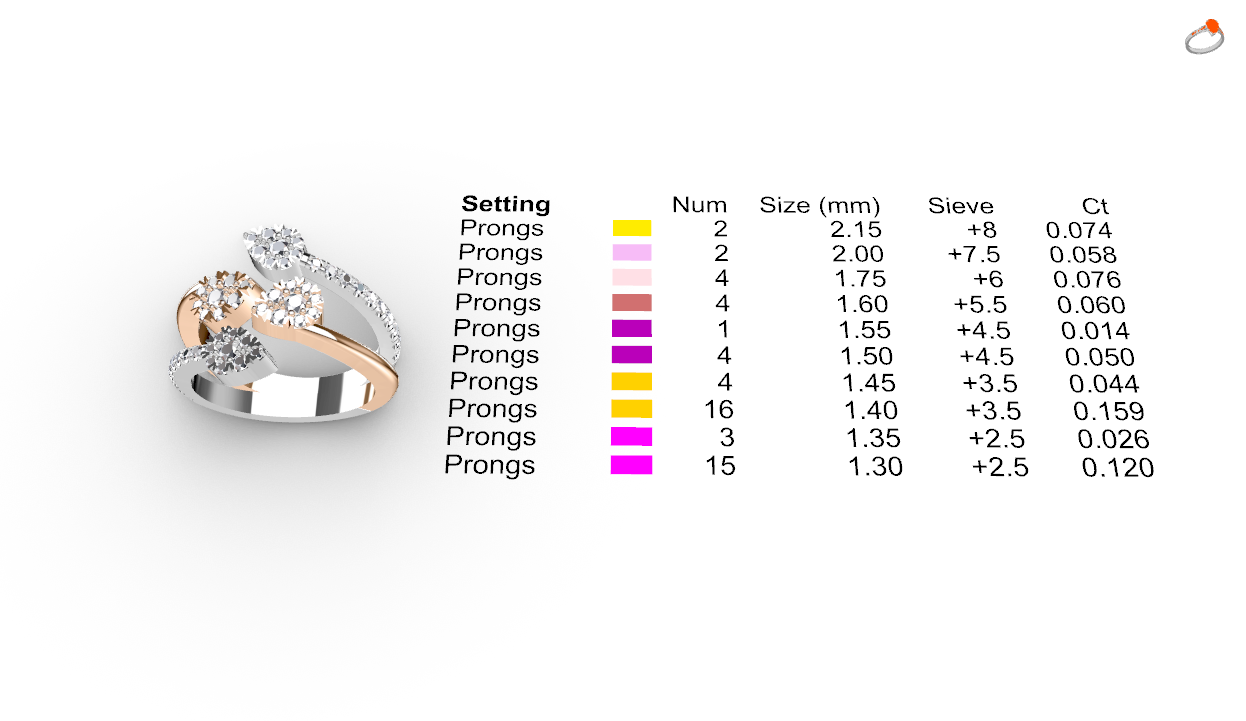

Breakdown Gems writes the gemstone cost breakdown into the viewport as a text block: run the command, pick a point, and the table is placed there — the stones classified by type, size, and quantity, with their cost.
.png)
The figures come from the setup in Breakdown Details, so the text always matches the pricing side of the document. For a table of the stones without costs, use Gems List instead.
See also Breakdown Metals, Breakdown Processes and Breakdown Extras for the other parts of the cost.
