Recess
Recess

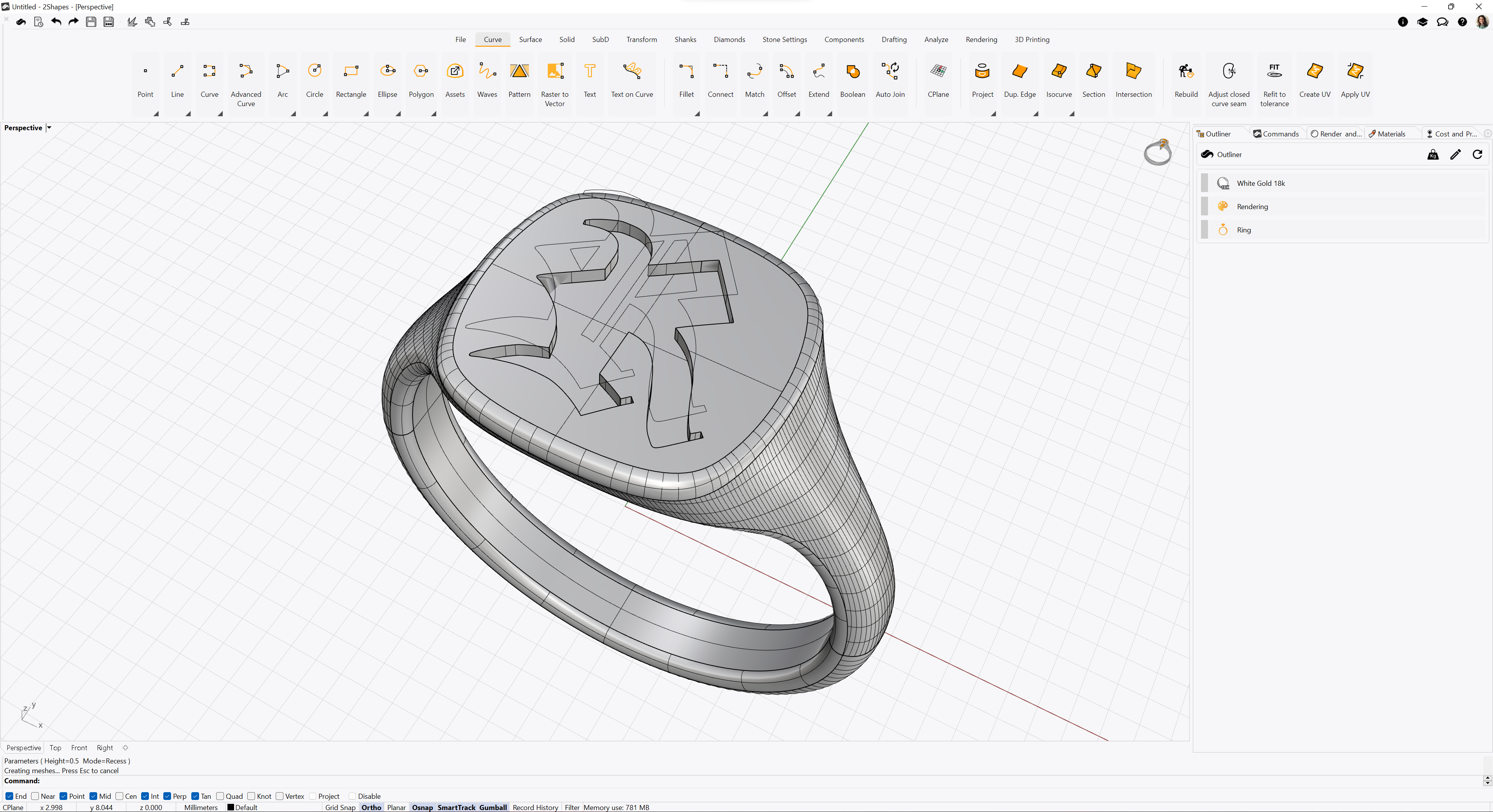

This command allows you to create depressions or protrusions on solid objects following the shape of a curve, which should be in contact with the solid.
.png)
When you run the command, its options will be displayed on the command prompt. It will first ask to select the curve, and then the solid object. Following will give you two parameters Height, which is the dimensions in millimeters of the recess or protrusion, and Mode, which can be Recess to make a depression in the object, or Protrusion to make a bump.
Pressing the Enter key confirms your changes and finishes the command.
