Raster to Vector

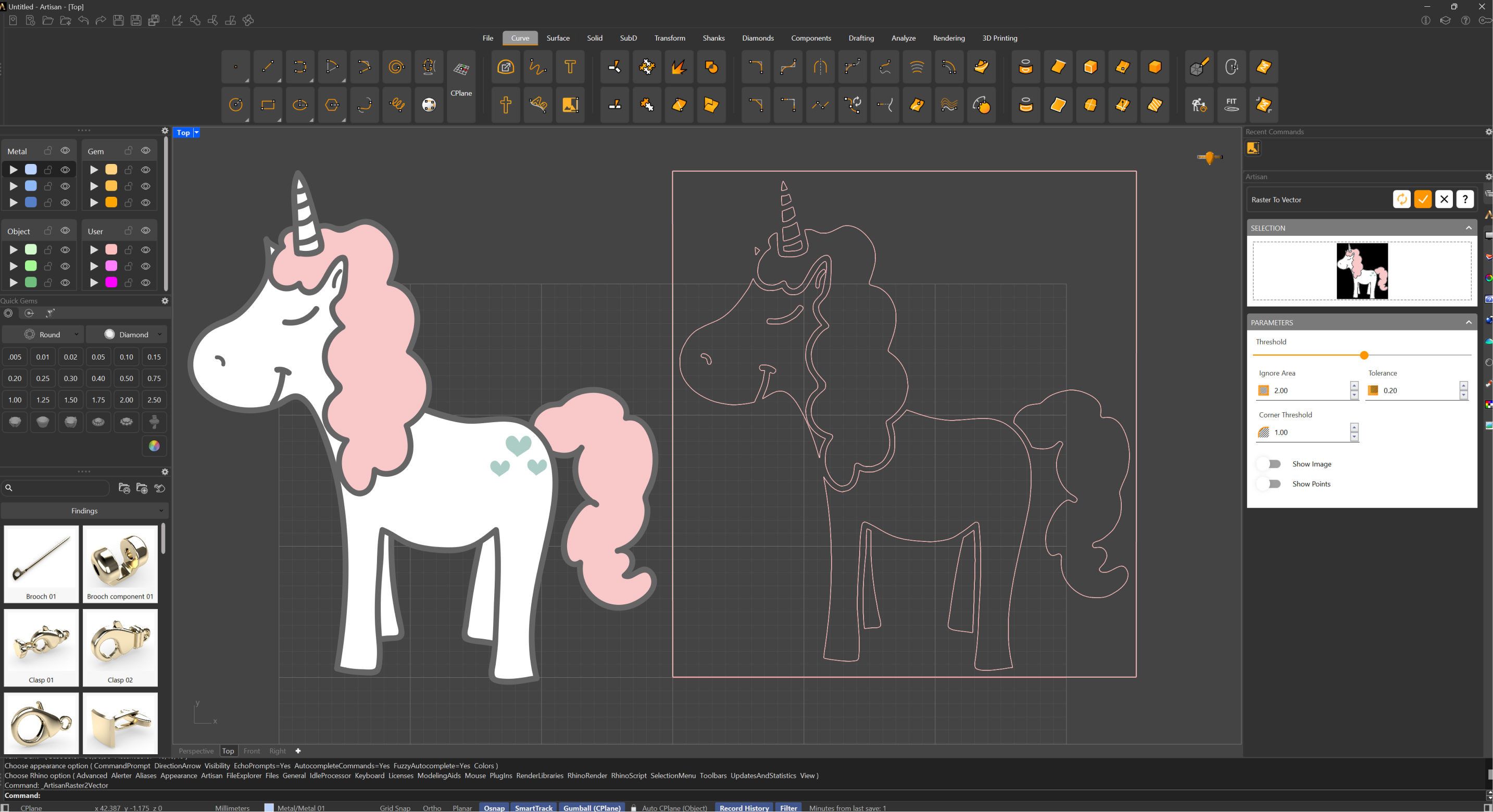

This command converts an image into a group of curves. It’s handy for translating images into 3D models.

The command’s parameters will be displayed on the Commands toolbar.

Select an image in any format, and a preview will be displayed. Using the available parameters, you can define how you want the curves to adapt to the image and whether you want to smooth sharp edges.
