Generate Dimension from Bangle

Generate Dimension from Bangle

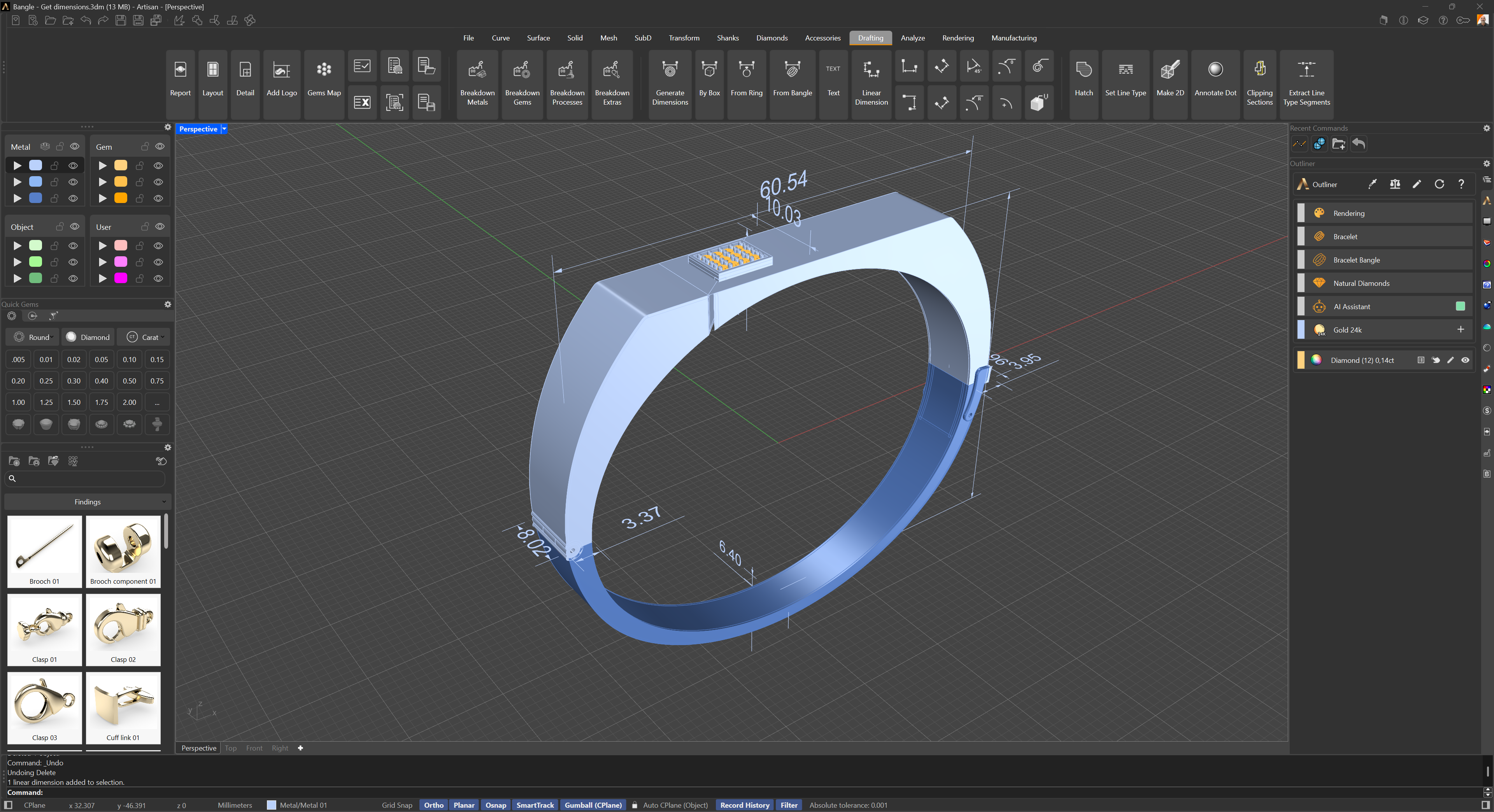

Generate Dimensions from Bangle extracts and displays the main dimensions of the selected bangle geometry.

It automatically detects and displays:

  • The width and height of the top and bottom sections
  • The width and height of the left and right sections
  • The overall width and overall depth of the piece

Steps

  1. Select the bangle geometry (press Enter to confirm a pre-selection).
  2. Set the command-line options if needed, then confirm.

Command-line options

Offset: Distance between the geometry and the dimension lines. Default is 2, adjustable from 0 to 100.

Box: When set to Yes, also adds the bounding box as a solid to the document. Default is No.
