Generate Dimension from Ring
Generate Dimension from Ring
Generate Dimension from Ring is a one-click tool that analyzes every object in the document and automatically generates the ring’s key dimensions:
- Ring size diameter
- Width and height of the lower shank section
- Height of the shank at mid-point
- Width and height of the central motif (head)
It does not simply measure the overall bounding box: it locates the ring’s finger size from the design’s parametric data and derives the shank and head measurements from it, so the result stays meaningful regardless of the ring’s design or style.

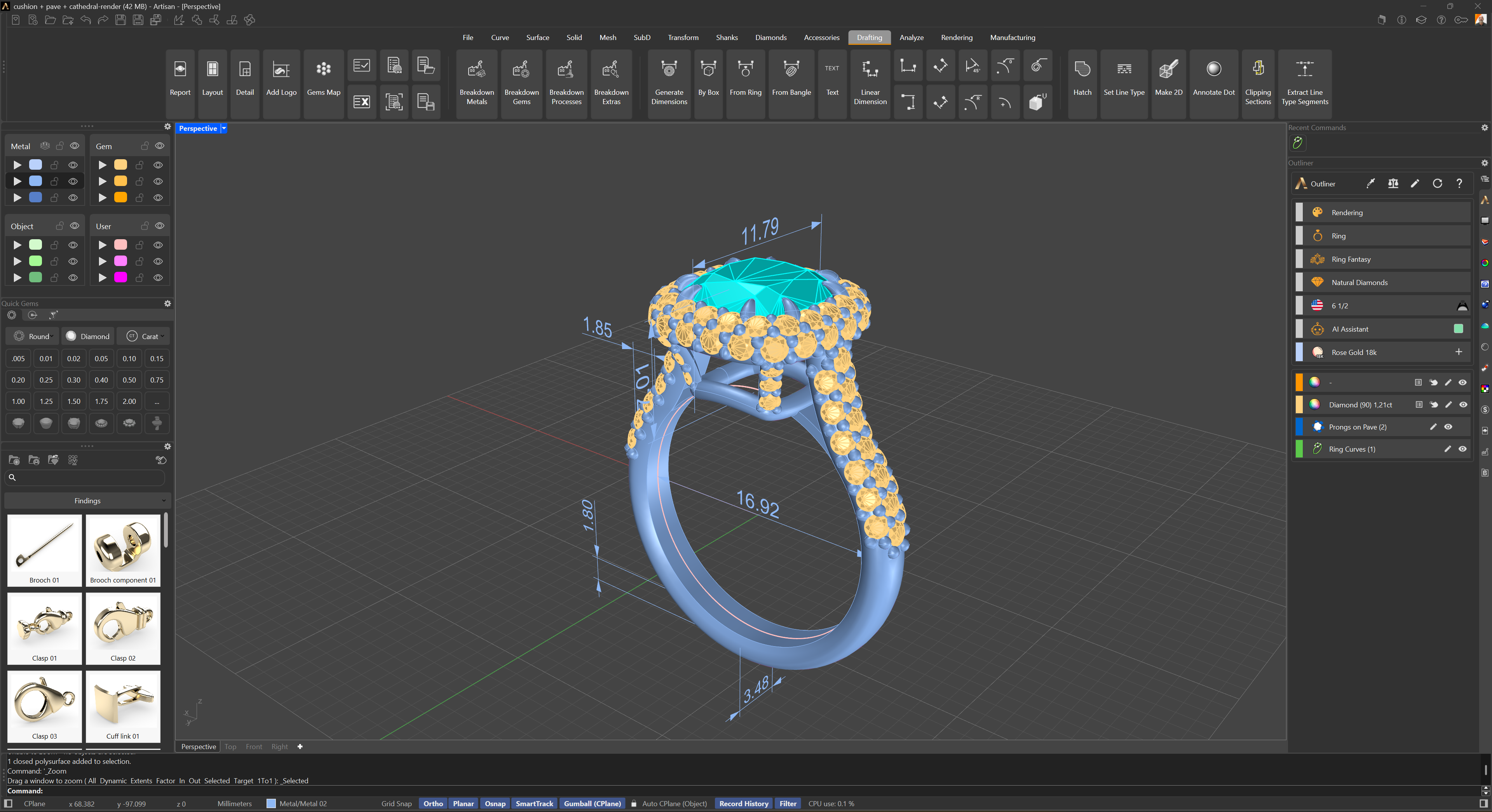

.png)
What if I have an STL or imported ring?
If the Outliner panel does not contain ring size information—because the design wasn’t created with the Shanks commands or was imported—you can still use this tool. Just create the inner sizing curve of the ring with the Curve tool in the Shanks toolbar. This curve lets the system identify the ring size and extract all related dimensions.
