Shanks
Wedding ring
Wedding Ring

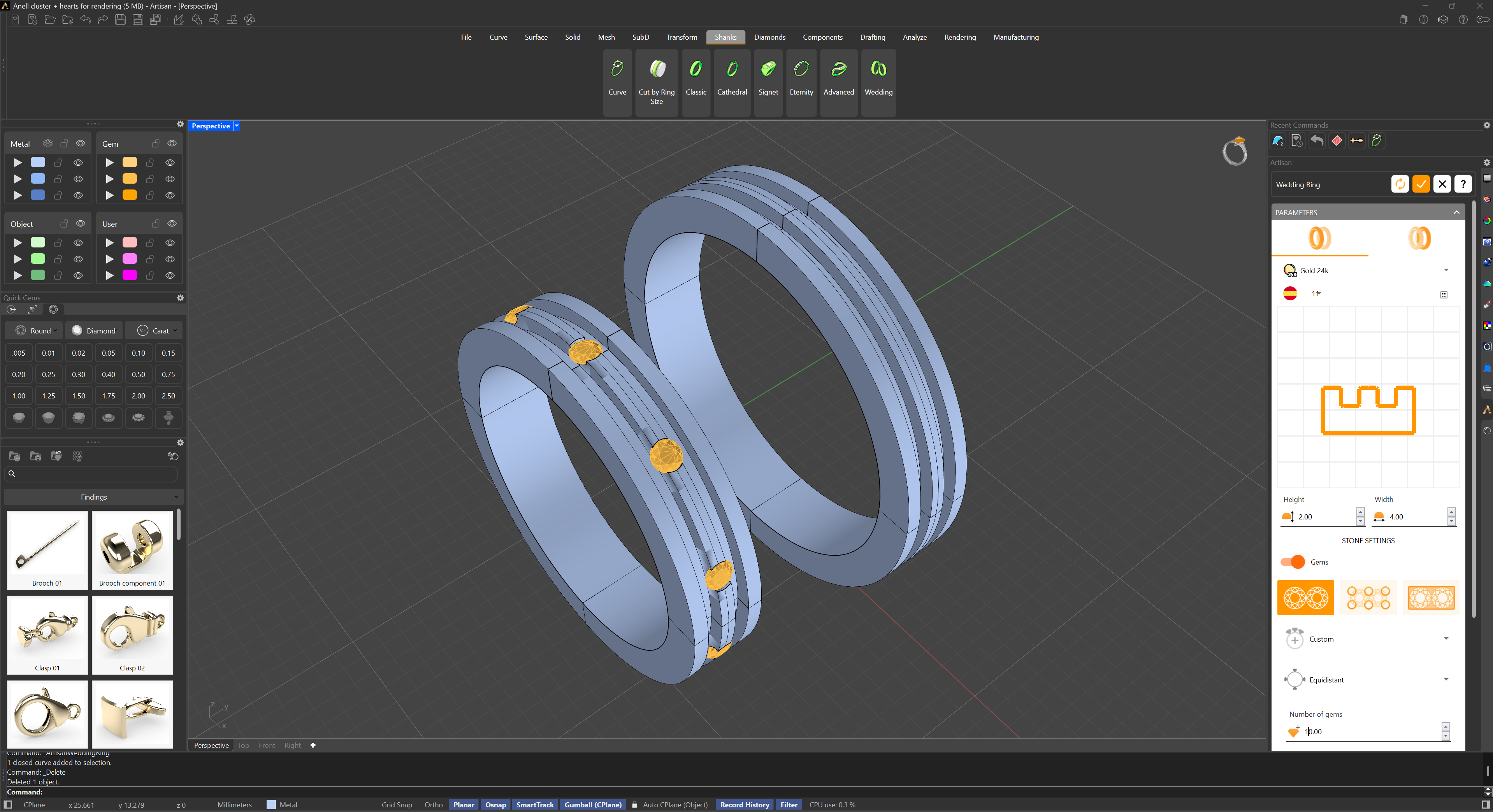

The Wedding Rings command is designed to create two wedding bands for the couple, offering customization options for each ring individually. This command consists of a Parameters Panel, divided into two tabs — Ring 1 and Ring 2 — one for each ring, plus a shared Finger Size section below them.
.png)
Ring 1
- Metal & Size:
Choose the metal (gold in several karats and colors, platinum or silver) and the ring size for this band from their respective dropdowns. - Profile:
Pick the profile asset that will be used to create the ring, and adjust its width and height. - Stone Setting:
Turn gemstones on or off with the Gems toggle. When enabled, choose the setting type — None, Prongs or Channel — and the gemstone distribution:- Full
- Half
- One Quarter
- Custom (If selected, you’ll define whether the gems are spaced Continuously or Equidistantly along the covered arc.)
- Gemstone Customization:
You can also set the gem shape (Round or Princess) and define additional parameters such as:- Gem Size
- Min. Distance between the gems
- Vertical, allowing you to control how the gemstones are positioned along the height of the ring.
- When the Prongs setting is selected, a Prongs group adds Gem Inside, prong Height, Extension Manufacturing, Move Z and Diameter.
Ring 2
The same set of parameters as Ring 1 — metal, size, profile, and independent stone-setting options — applied to the second band, so each ring in the pair can be customized on its own.
This command provides an intuitive way to create personalized wedding rings, offering both precise customization for the profile and size, as well as flexible options for adding and arranging gemstones.
