Detail
Detail

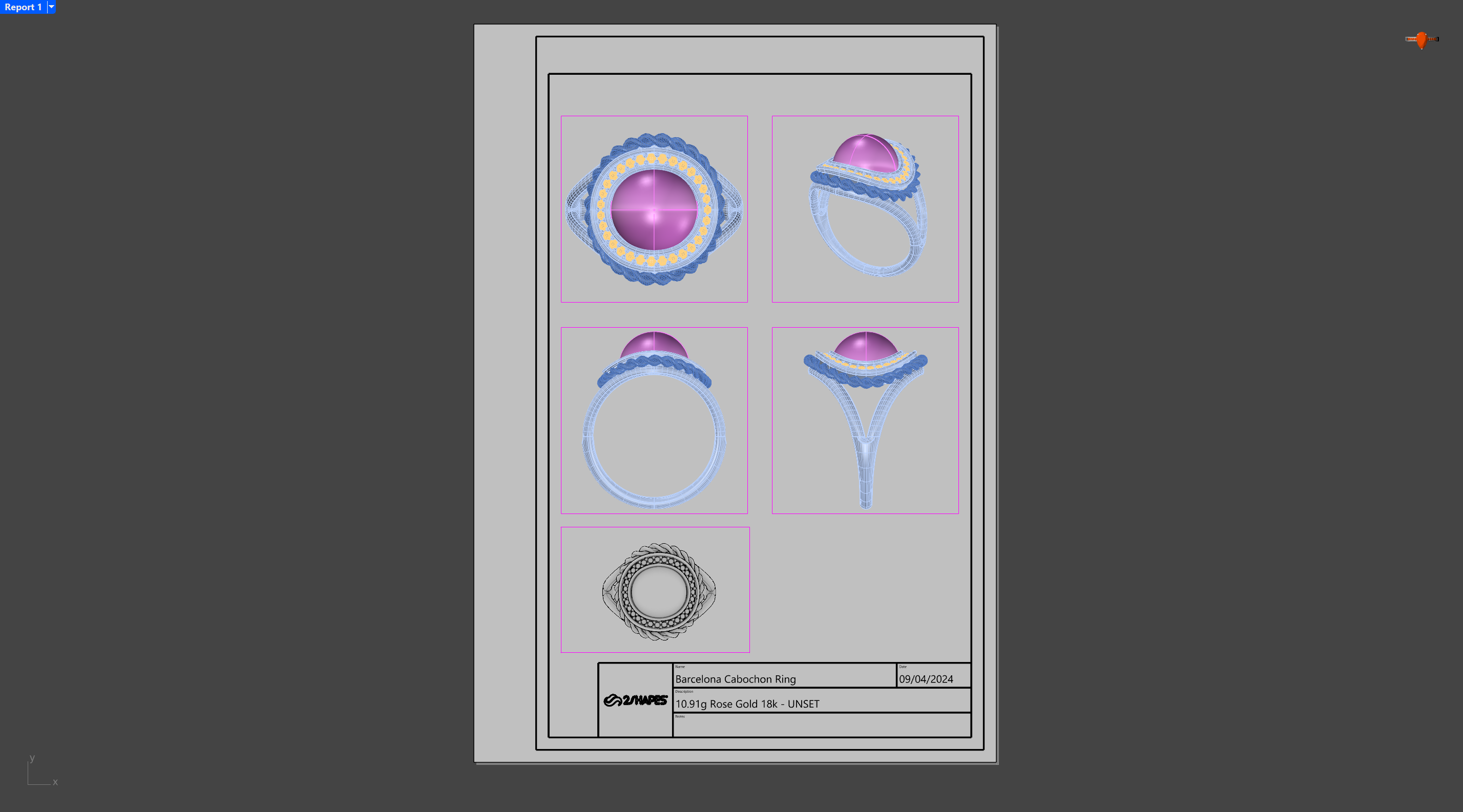

Detail places a new detail viewport on the current layout — a framed window into the model, with its own view angle and scale, that you draw as a rectangle on the sheet.
.png)
A Report sheet starts with the four main views, but some pieces need more: a close-up of the setting, an extra angle on the gallery, a section. Each detail you add is independent — double-click inside it to set its own view, zoom, and display mode.
For more information, please refer to the Rhino documentation.
